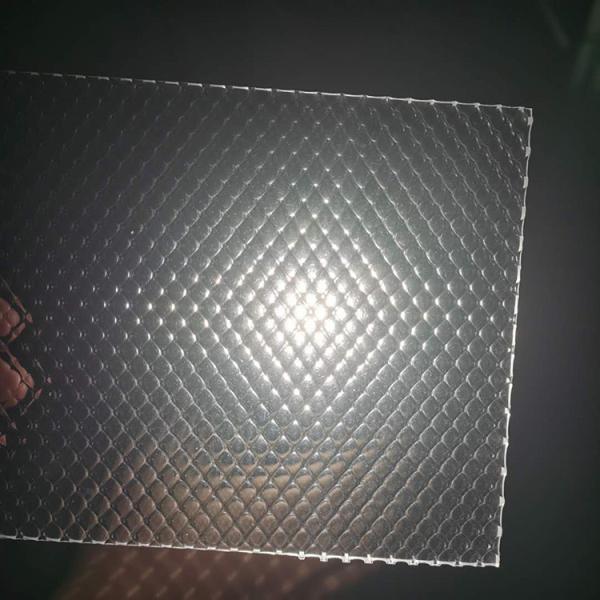

High Diffusion Plastic 2mm PC Polycarbonate Diffuser Sheet For Enhanced Light Diffusion
Polycarbonate light diffusion plate with heat resistance, higher endurance, good mechanical strength, fireproof performance, and has high light transmittance.excellent shielding and durability. the light diffusion effect to achieve the best condition, the most suitable for direct type backlight unit.
The surface structure of the PC light diffuser is two-sided polished to achieve the best balance of light transmittance and uniform light effect, its main characteristics.
1. Better regulation of light transmittance and fog, improve light efficiency.
2. Contact between the matte surface and the light guide can effectively reduce static electricity and prevent light spots.
3. The use of matte surface to receive light sources can greatly reduce the loss of light, thereby improving light efficiency
4. The surface is frosted to reduce the fingerprints and scratches caused by the installation process, and the surface is smooth and frosted, high-grade and comfortable.
Technical information
| Material | Bayer,zhengfei(zhengfei), Mitsubishi |
| Width | 1220mm,1560mm,1820mm,2100mm/customized |
| Length | No limited |
| Thickness | 1.5-10mm |
| Color | Clear,green,opal,bronze,blue,orange,red/customized |
| Notes | Special color,size can be customized |
| 1) Impact strength: | 850J/m. About 200-350 times of common glass. |
| 2) Light weight: | About 1/2 times of glass of the same thickness. |
| 3) Light transmission: | 80%-92% for different thickness of clear color |
| 4) Specific gravity: | 1.2 g/cm3 |
| 5) Coefficient of thermal expansion: | 0.065 mm/m° C |
| 6) Temperature range: | -40° Cto 120° C |
| 7) Heat conductivity: | 2.3-3.9 W/m2 º |
| 8) Tensile strength: | >=60N/mm2 |
| 9) Flexural strength: | 100N/mm2 |
| 10) Heat deflection temperature | 140 ° C |
| 11) Modulus of elasticity: | 2, 400mPa |
| 12) Tensile street at break: | >=65mPa |
| 13) Elongation at break: | >100% |
| 14) Specific heat: | 1.16J/kgk |
| 15) Soundproof index: | 4mm-27dB,10mm-33dB |
Raw material
Product features
Applications
Company information
Founded in the 2014,SUZHOU ZHENGFEI BOARD CO.,LTD is a professional enterprise which specializes in manufacture and processing of Polycarbonate sheet.By using fine materials (mainly from Bayer and zhengfei) and introducing advanced co-extrusion production line,we offer superior quality products to customer from all around the world.
Why choose us?
1. 12 years plastic manufacturing and fabrication experience.
2. Advanced technology &equipment to ensure highly quality product.
3. Professional R & D and production teams.
4. Rapid delivery time.
5 .Strict quality Control System.
6. Good reputation, establish long-term trade relationship with customers.
7. Exported to America / UK/Australian /Germany /South Africa /Middle East/etc.
FAQ
Q1. Are you factory or Trade Company?
A: we’re factory in this field over ten years with professional experience.
Q2. How can I get a sample,and how long to get?
A: We provide samples free,customers bear the freight cost,the sample will arrive about one week.
Q3: Is there UV resistant layer on the sheets ?
A: Yes, our PC sheet usually has one-side UV resistant layer.We also provide both sides UV resistant layer if the customer need.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
